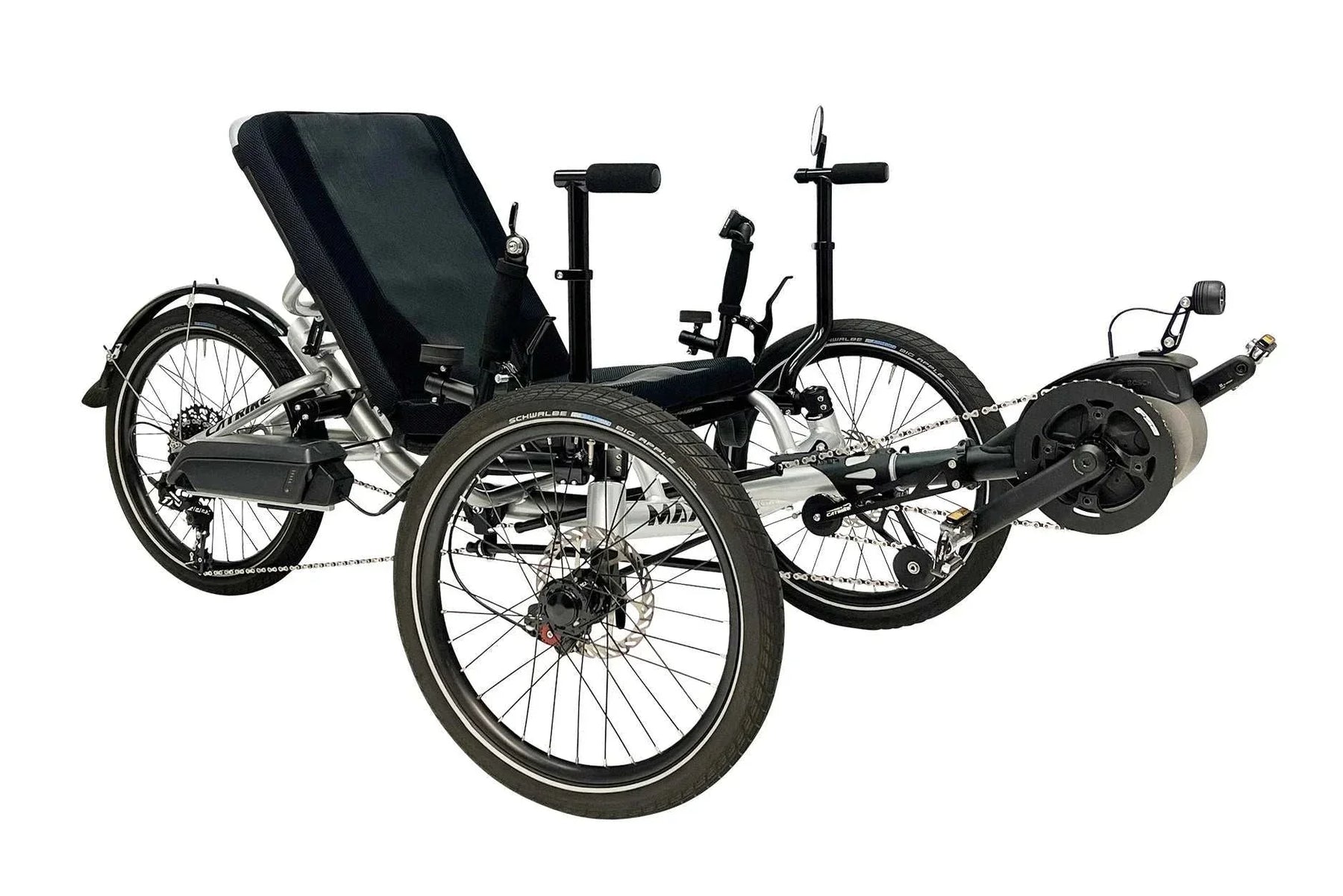

Catrike MAX eCAT three-quarter view in Moon Rock Silver, front pointing right, with Bosch Active Line Plus motor and battery

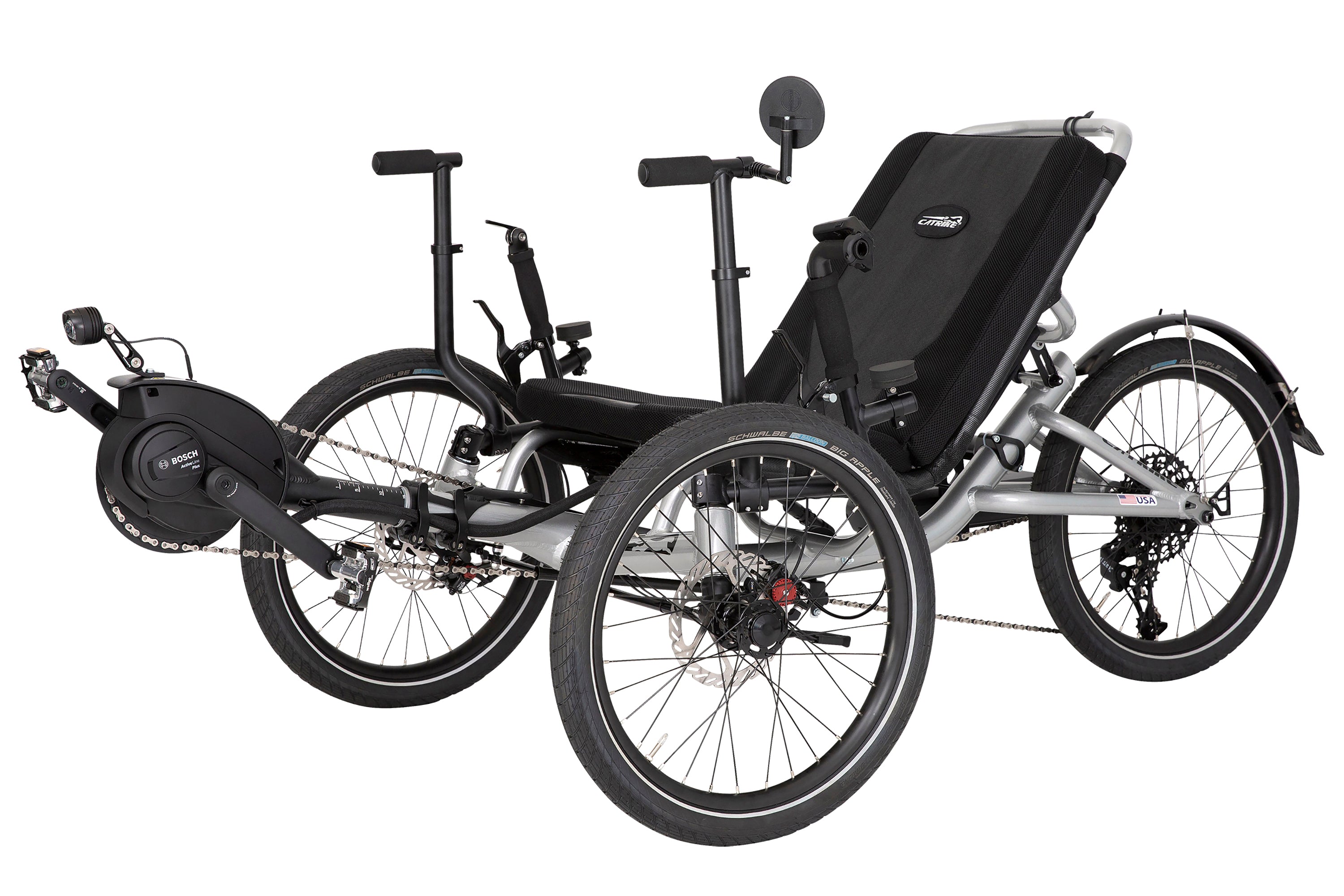

Catrike MAX eCAT three-quarter view in Moon Rock Silver with Bosch Active Line Plus motor

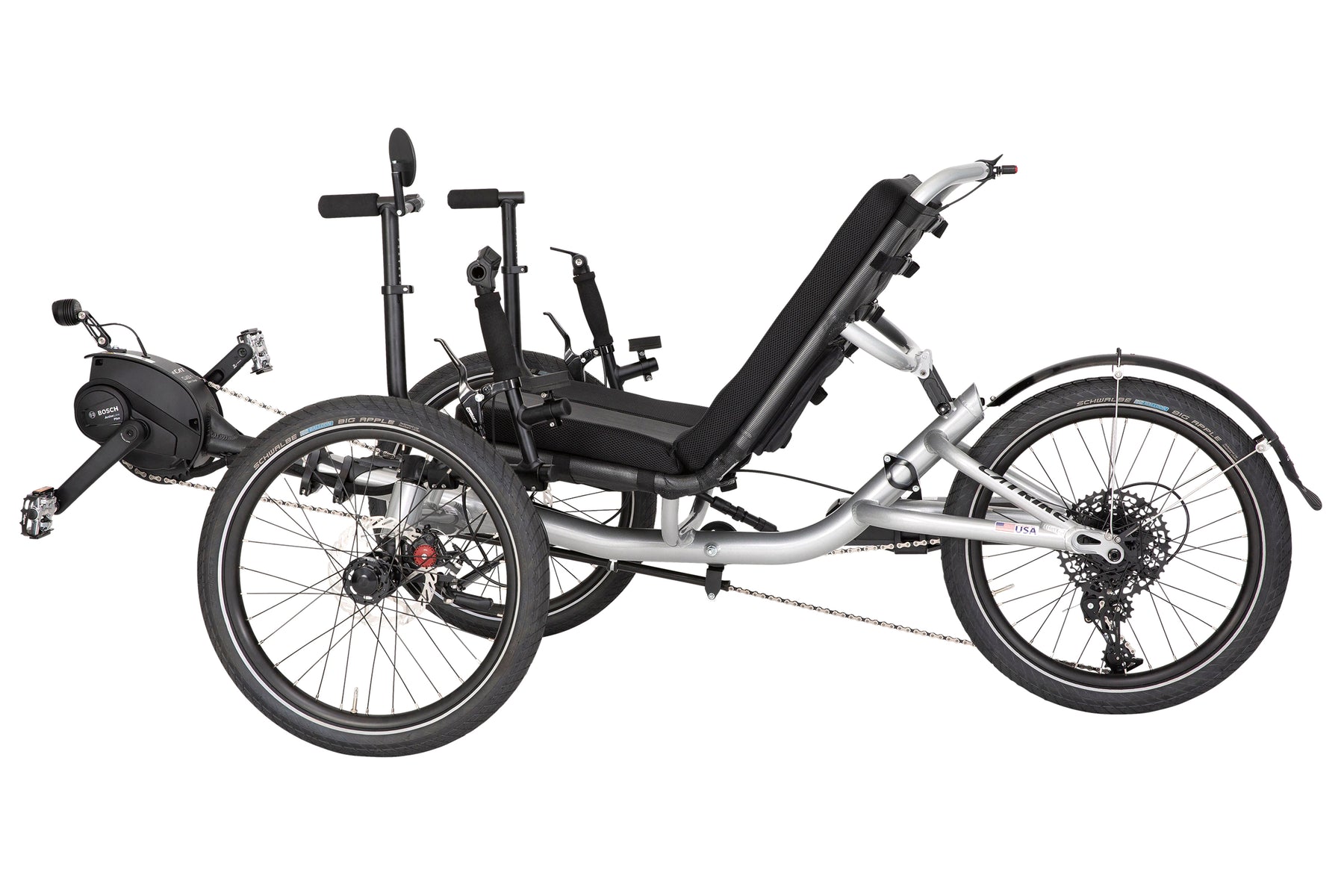

Catrike MAX eCAT side profile showing the Bosch drive and rear cassette

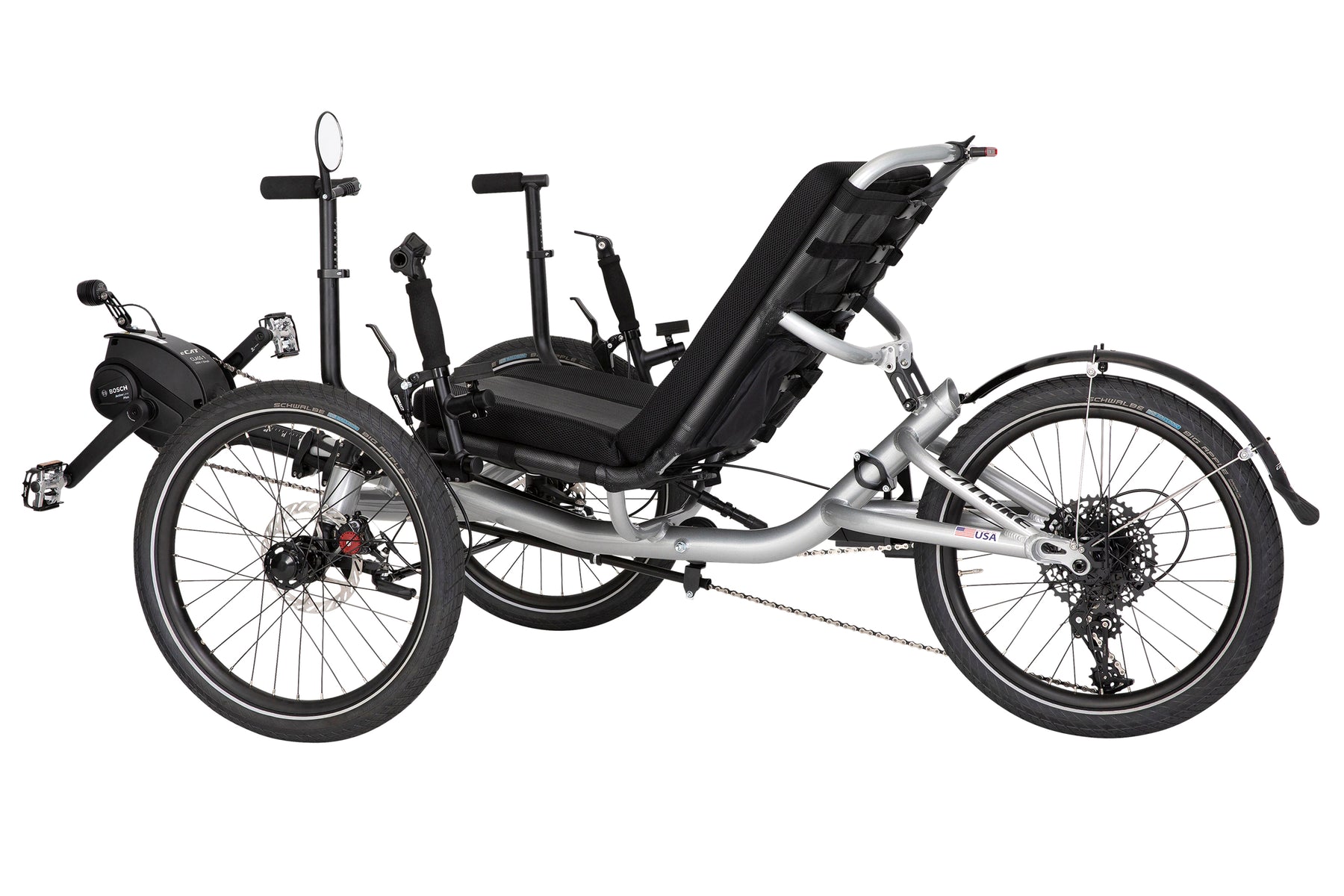

Catrike MAX eCAT side view showing the seat recline and adjustable assist bars

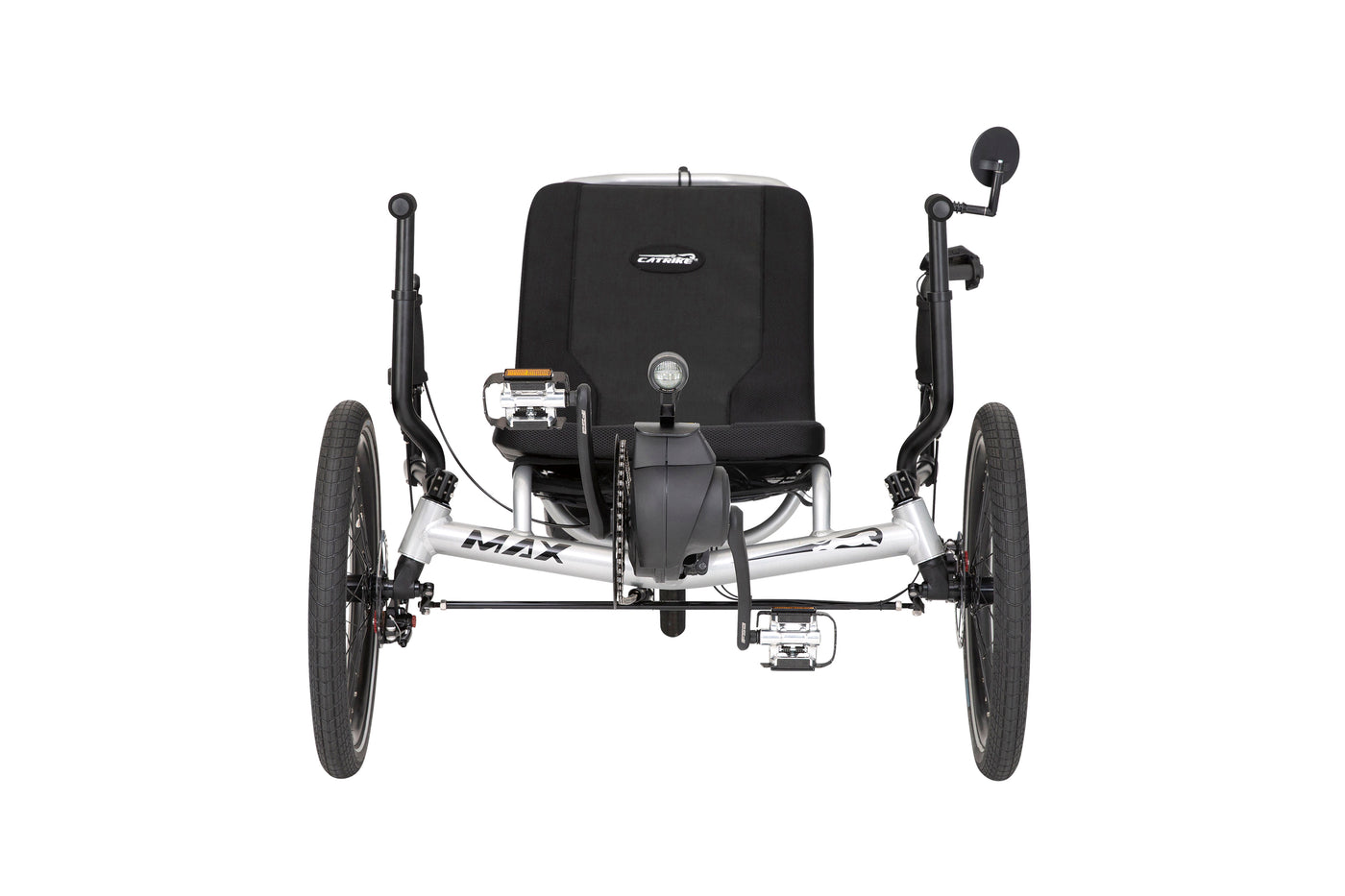

Catrike MAX eCAT front view showing the wide seat and adjustable assist bars

Catrike MAX eCAT

$7,050.00
Color:Atomic Orange

The sturdiest trike Catrike builds, now with Bosch electric assist behind it.

Ask a question

Ships Fully Assembled

Flat Rate $349/$499

Home Delivery Nationwide

Key Benefits:
<ul>
<li>Bosch Active Line Plus Motor</li>
<li>425 lb Capacity</li>
<li>62 Mile Max Range</li>
<li>Assist Bars</li>
</ul>

The MAX eCAT takes everything that makes the MAX the most accommodating trike in the Catrike line and adds a Bosch electric-assist drive. The higher, wider seat, the larger diameter cross-member and the heavy-duty rims carry up to 425 lb of rider and gear. The Catrike Assist Bars give you something solid to push against getting in and out.

The Bosch Active Line Plus motor is mated to a 1x11 SRAM drivetrain (11-42 cassette, 44 tooth chainring). It delivers 50 Nm of torque and up to 270% assistance, coming on smoothly as soon as you press the pedals rather than surging. The 400 Wh battery is good for up to 62 miles, and the Purion display stays readable in direct sun. The whole trike is UL2849 certified.

Standard Features
Bosch Active Line Plus motor (Class 1)
Bosch 400 Wh battery
Purion display
SuperNova Mini 3 headlight
TL3 taillight
Adjustable Assist Bars
Rear Fender
Flag Mount & Flag
Mirrycle Rear View Mirror
Multi-Purpose Clipless Pedals
Computer Sensor Mount
No Brake Steer
Self Centering Steering
Ackermann Steering Compensation
Structural Front Boom
Quick-Release Indexing Boom Clamp
Aluminum Rod Ends
12x142 Rear Thru Axle
20mm Front QR Thru Axle

Flat Rate, Nationwide Shipping – Straight to your door, ready to ride.

Inquire for this product

Enter your details below and we will give you a call to help you with your perfect recumbent trike.


Or call us now to buy this product
Catrike MAX eCAT three-quarter view in Moon Rock Silver with Bosch Active Line Plus motor

Who the MAX eCAT is for

This one's for the rider who needs room to sit and a little help getting up the hill. The MAX eCAT carries up to 425 lbs of rider and gear, and the seat sits higher and wider than most trikes, so you're not folding yourself into it or fighting to stand back up. The Bosch motor takes the climbs and the headwind off your knees, which means the ride ends when you decide it does, not when your legs do. If a standard trike ever felt too small or like too much work, this is the one to look at.

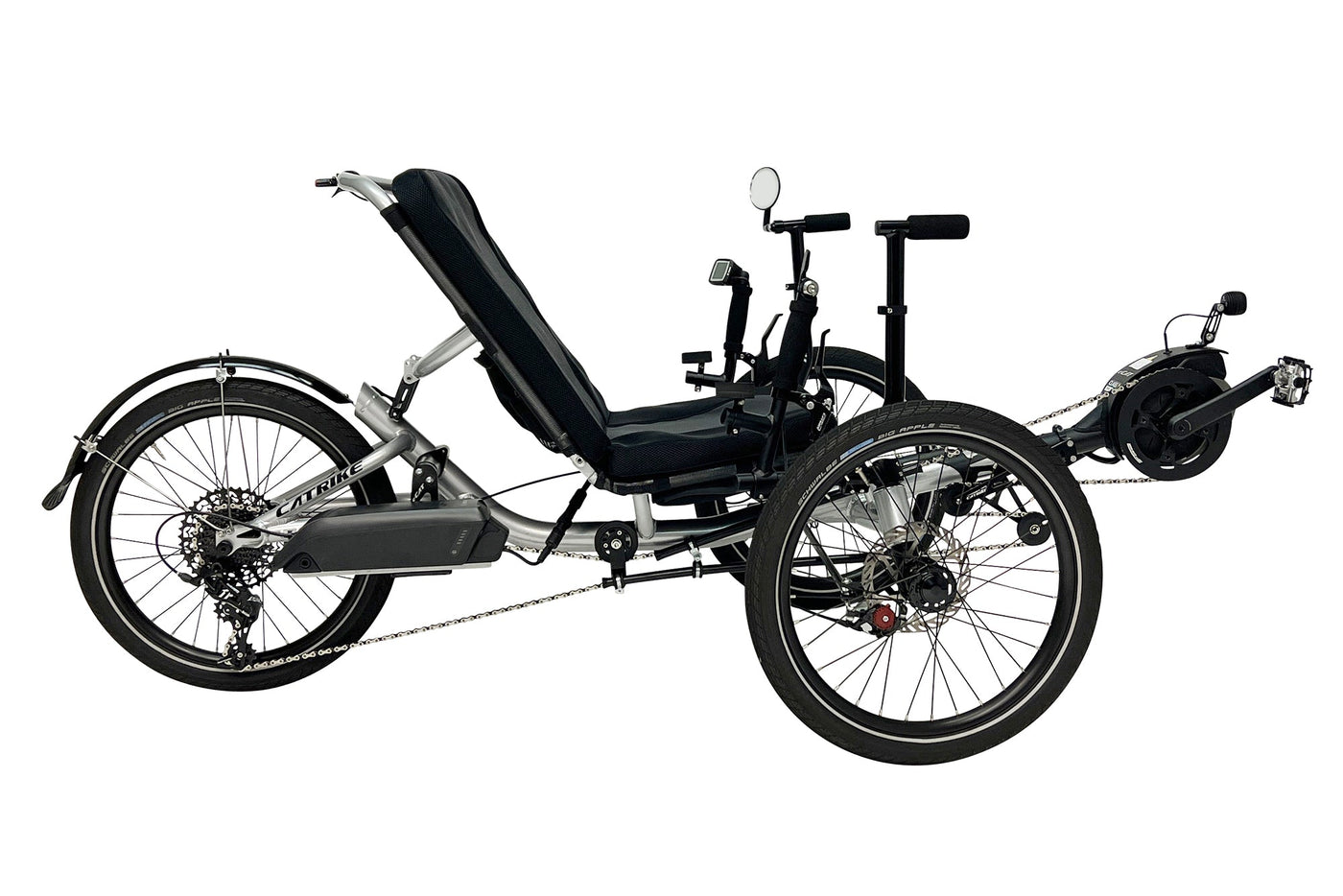

Catrike MAX eCAT drive side view in Moon Rock Silver showing the Bosch battery and Purion display

Bosch Active Line Plus Motor

The 250-watt Bosch mid-drive reads how hard you're pedaling and puts up to 50 Nm of torque behind it, with four modes from Eco to Turbo and assist all the way to 20 mph. The hill doesn't go away. It just stops being the reason you turn around.
Catrike MAX eCAT side profile showing the Bosch drive and rear cassette

Built to carry 425 lbs

A larger cross-member, sturdy wide rims, and a seat that sits higher and wider than the rest of the Catrike lineup let the MAX eCAT carry up to 425 lbs of rider and gear. If every trike you've sat in so far felt tight, this is the one with room built into it.

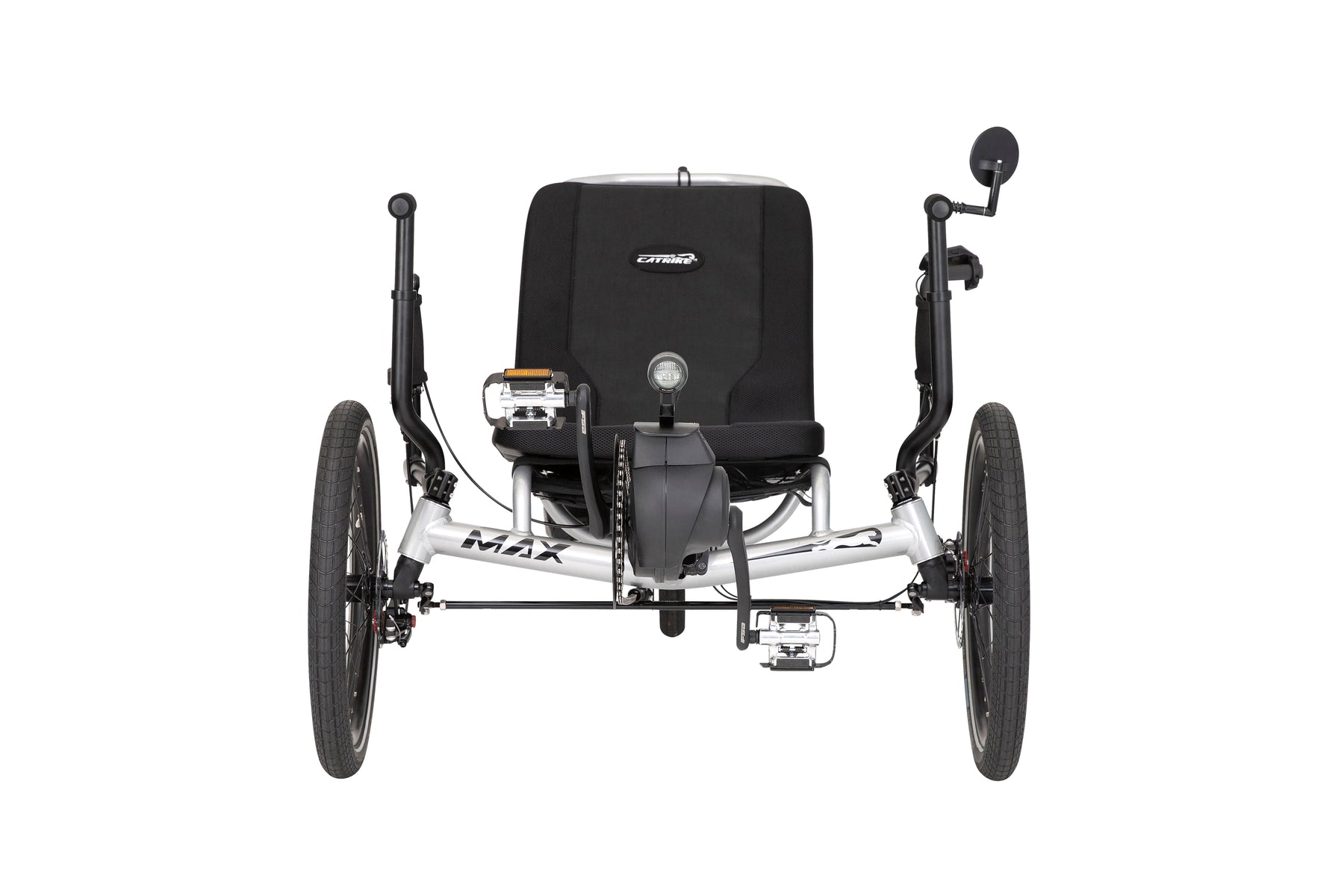

Catrike MAX eCAT front view showing the wide seat and adjustable assist bars

Assist Bars on both sides

Adjustable Catrike Assist Bars give you a solid handhold left and right, so sitting down and standing back up is a hand on the bar instead of a balancing act.

Frequently Asked Questions

Bosch rates the 400 Wh battery at up to 62 miles. Where you land inside that number depends on the mode you ride in and the ground you cover. Eco on flat pavement gets you a long day. Turbo up a grade eats it faster. Either way you're plugging in at home, not hunting for a charger on the trail.
No throttle. It's a Class 1 pedal assist system, so the motor only works while you're pedaling. You pick the mode on the Purion display, Eco through Turbo, and the motor matches what your legs are doing up to 20 mph and a 105 cadence. Peak torque is 50 Nm, and the whole system is UL2849 certified.
Same frame, same 425 lb capacity, same wide seat and assist bars. The eCAT adds the Bosch motor, a 400 Wh battery, the Purion display, and SuperNova head and tail lights that run off the main battery so there's nothing extra to charge. It runs a 1x11 SRAM drivetrain and weighs 57 lbs.
Up to 425 lbs of rider and gear. That's the most of any trike Catrike builds. Larger cross-member, heavier rims, wider seat. If a shop has told you that you're over the limit on everything they carry, this is the trike to ask about.
That's the whole reason the assist bars are on it. The seat sits at 14.25 inches, higher than most trikes, so you're not dropping all the way to the ground, and there's a bar on each side to push off. If standing back up is the part you're worried about, this is the trike to look at first.
X-seam is what matters here, not your height. Catrike lists 39 to 46 inches, and an XL boom stretches that another 5 inches. Measure it before you order rather than guessing at it. Get on a Dream Trike Session and we'll walk you through the measurement and tell you straight whether the MAX eCAT fits.
